Earth and Orchard Toilet Plans



Mexico work, past work [200 images] thanks to Lionila, Dora, and Amanda Sarkis for help on these

Current Models [140 images] thanks to Betty Siemans, Ed Hachfeld, Michelle Logan, Barbara Wishengrad and Maya Shoemaker for help on these

Drawings

The Movie [partial draft]

There's more info on toilets (in Spanish) in Maruata at the Crossroads (download).

Old, very partial, low bandwidth version of this page for ultra slow internet to remote areas...

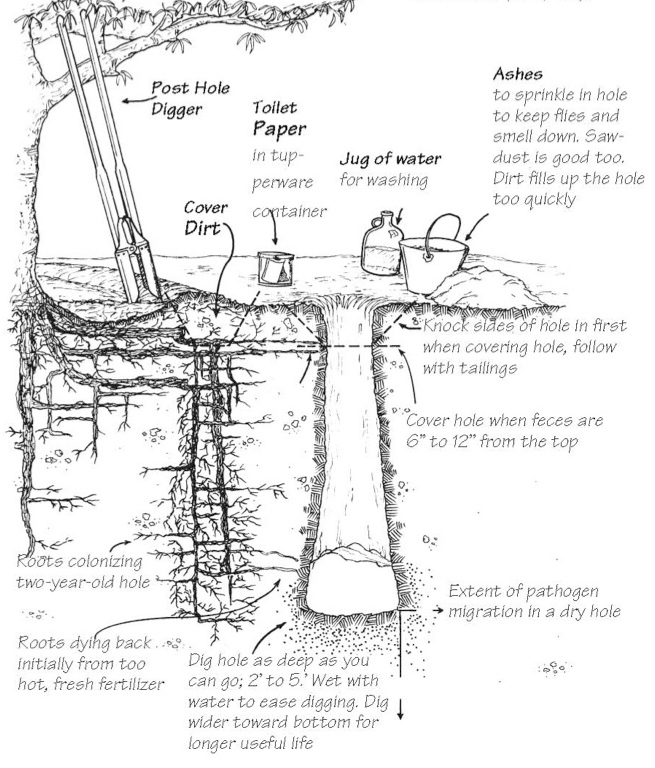

How it Works

Earth and Orchard Toilets are the most sanitary, cheapest, most ecological excreta management systems.





  • Beneficial microorganisms bio-degrade pathogens

  • Plant roots take them up

  • A tight lid excludes flies and other vectors


  • The soil naturally absorbs odors

  • When the hole is full, bury it and move to the next spot
  •

    Design Examples

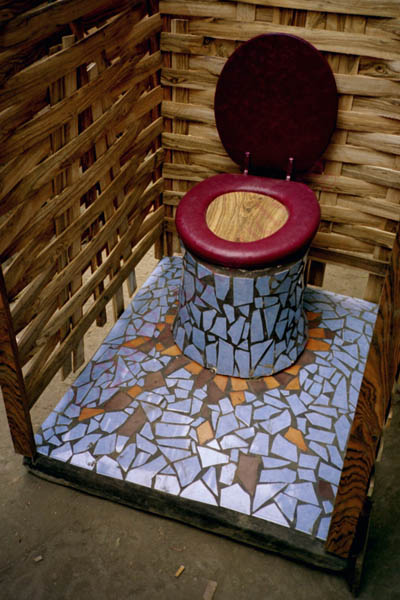

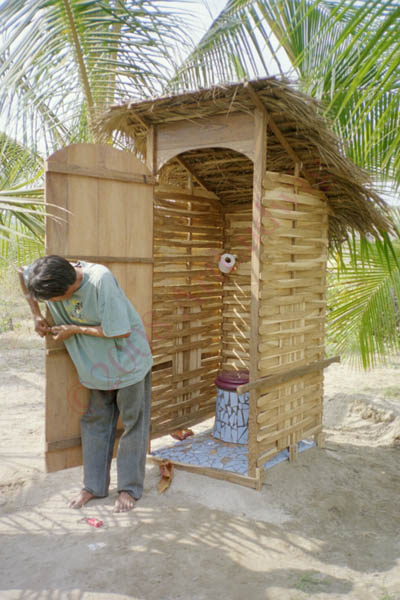

    Deluxe Orchard Toilet

    With tiled masonry base and throne, casita for privacy/rain protection, fabricated by indigenous craftspeople in Michoacan, Mexico.

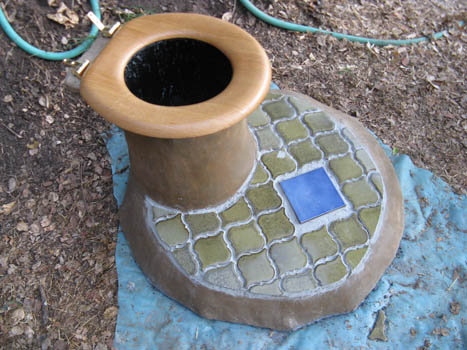

    Orchard toilet, fancy, square, with throne. Casita made of strips of cocobolo (extremely durable, beautiful hardwood). Masonry base is three pieces, and can be lifted assembled with four people via handles.

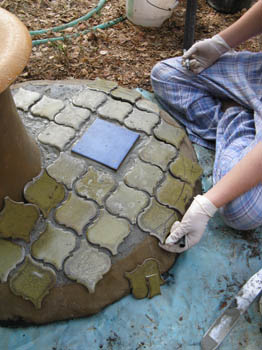

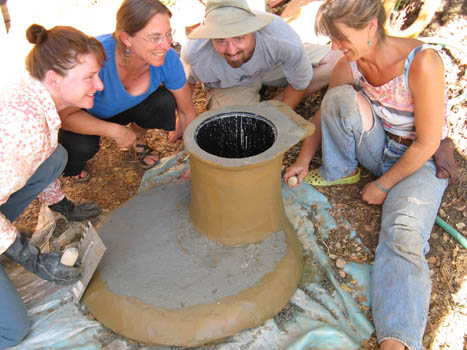

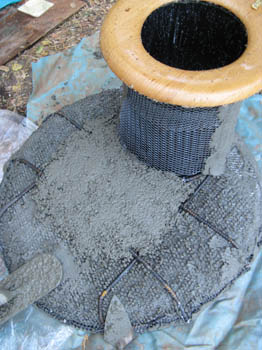

    Orchard toilet construction photos

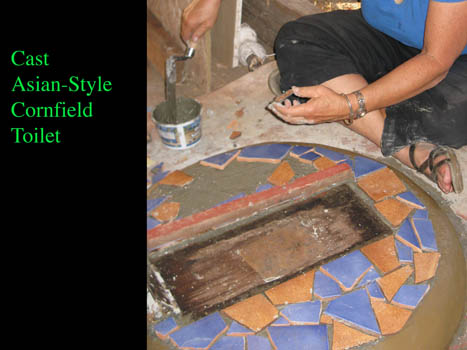

    Cast Asian-style Cornfield Toilet




    Extras

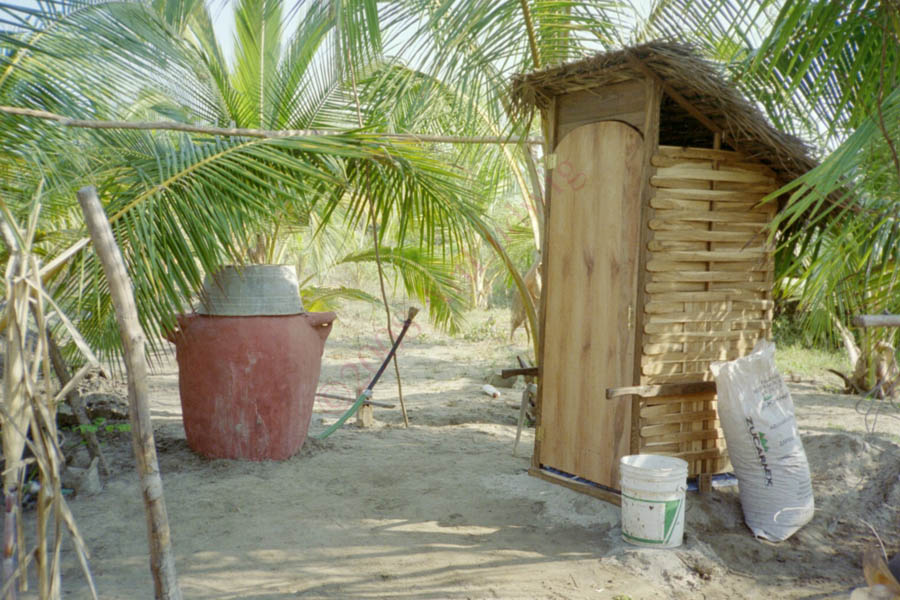

    Handwash water storage urn (sanitary handwash for earth toilet). Hose lowers, letting out a trickle of water (urn holds enough water for about 1,000 hand washes). Note ash, wood chips on side for flies, urine odor.
